Products

▼Hook-up Suspended Ceiling System

1.Product Features:

Simple structure: Hook-up type square aluminum ceiling system. This structure is one-way equal keel hook-up type structure;

Enhanced tightness: The installation structure of the aluminum metal ceiling is simple and stable, the ceiling is hidden, the installation and dis-assembly are simple and easy, the surface is very flat, the splicing between the plates is orderly folded together through the keel, and the unique hooking design of the plate edge can well control the mobility between the plates, thus ensuring that the gaps between the plates are more tight and flat;

Easy maintenance: This structure has a unique design of access opening for maintenance, which does not affect the beauty of appearance and ensures the overall unity and beauty of the ceiling.

Wide range of application: Hook-up type square aluminum gusset ceiling is suitable for corridors, aisles, hotels, shops, offices, hospitals, ticket offices, exit passages, atriums, etc.

2.Scope of Application:

Applicable places: Senior office buildings, airports, clubs, stations, airports, large shopping malls, passageways, etc.

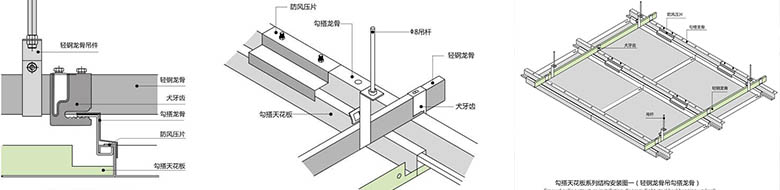

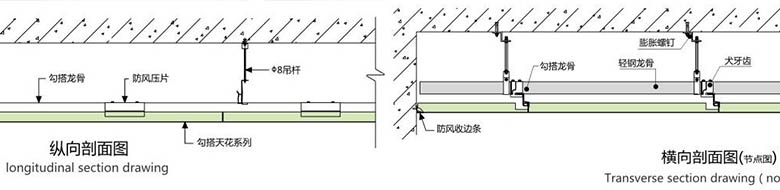

3.Installation Instructions for Hook-up Suspended Ceiling Series:

1.Install edge aluminum angle based on the same level line;

2.According to the 1-1.2m spacing arrangement of light steel keel or universal angle iron (if there is no space affected by elevation, it can also be derrick directly fixed hook up with keel), hook up with keel according to the spacing of plate width A, use screws to fix it on the keel or universal angle iron (or derrick);

3.Adjust the level, hook up the hook-up plates onto the keel in sequence, adjust the plate seam to be consistent, line up a string to check;

4.If installed outdoors, windproof sheeting shall be installed on hook-up keel to achieve good wind-resist effect.

5.Pay attention to the parallelism of hook-up keel and its verticality with upper light steel keel or universal angle iron, otherwise it will affect the installation quality of the plate face.

Product Name:Hook-up Suspended Ceiling System
